The Shinoe Purification Series - ASEO
VF 90
A unique design that combines application of Air Purification, Sterilization and Sanitation remove up to 98% of smoke, dust, mist, malodor,bacteria and mold spores which significantly eliminates the need of cleaning and reduce redecorating cost.
Product Features:
- Improve Air Quality
- Reduce infectious disease
- Reduce mold, airborne allegerns, bacteria, germs
- Remove odors, VOC and smoke
- Improve air system efficiency
- Low cost operation
- Low maintenance
- Safe and effective
- Chemical free disinfection
Specification
- Dimension : Inlet 173 x 173 x 205 mm (Outer)
: Inlet 160 x 160 x 205 mm (Inner)
: Outlet 180 x 180 mm (Outer)
: Outlet 137 x 137 mm (Outer) - Filter : Shinoe Filtration System
- UVC : CCFL Quartz Glass
- Ion Generator : STI 50 Mpcs/cm3
- CFM : 90
- Indicator Light : Green (Normal), Red (Faulty)
- Noise Level : <48db
- Power : 21W
- Voltage : 220/240 50/60HZ
- Duct Size : 100mm(4")inch
- Dimension : 300mm(12")outlet
- Weight : 2.4kg (Inlet)m 800G (Outlet)
- Installation : Ceiling Mounted

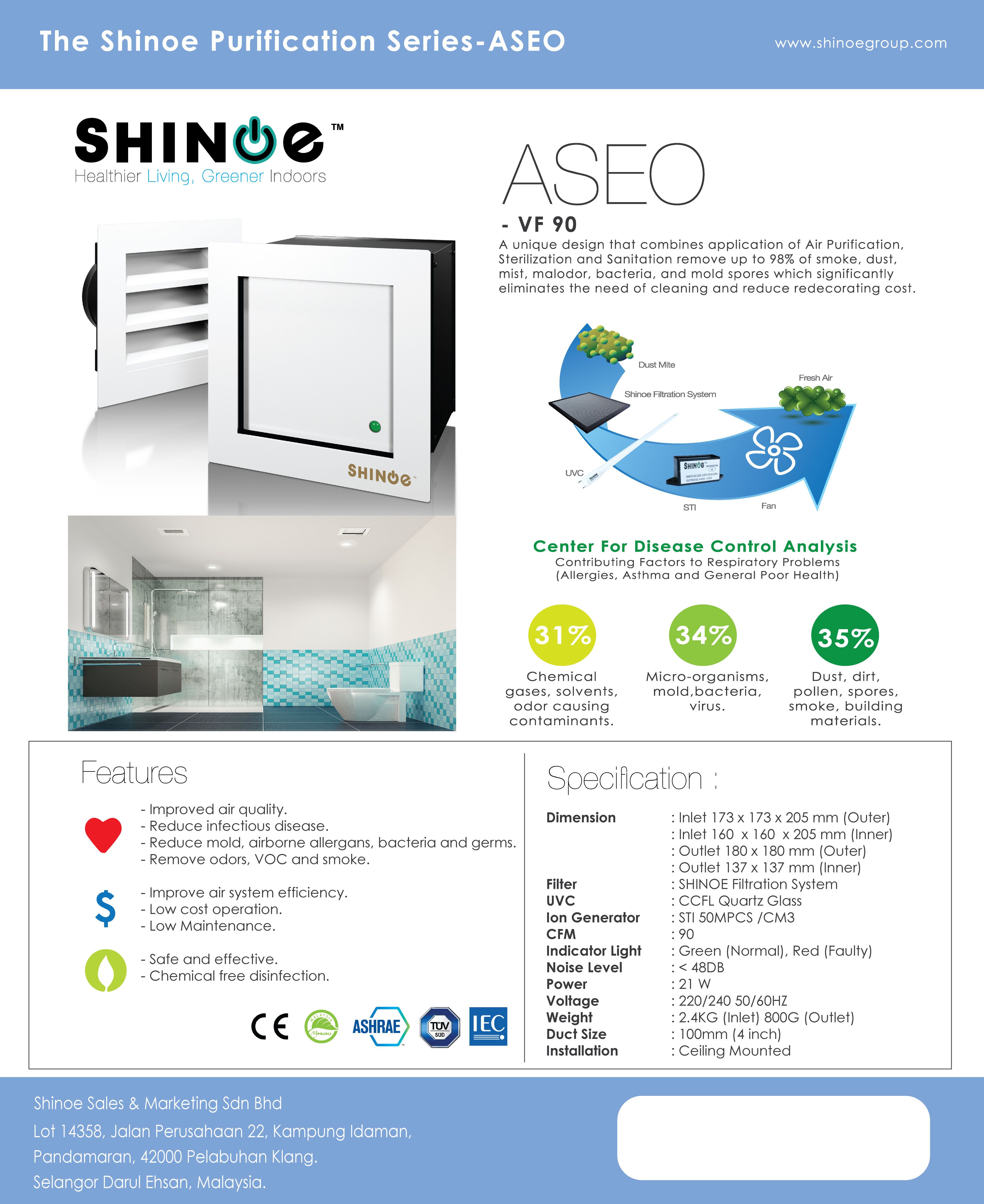

Brochure
Get your copy now!
VF90 is a unique design that combines application of Air Purification, Sterilization and Sanitation remove up to 98% of smoke, dust, mist, malodor,bacteria and mold spores which significantly eliminates the need of cleaning and reduce redecorating cost.
Download
