The Shinoe Purification Series - ASEO

VF 130

ASEO VF130 is a space saving ceiling mounted close loop ventilation system (CLVS) with easy and hassle free installation.

The architectural 3D unique design creates an effective air flow pattern providing a highly efficient and cleaner air circulation throughout the entire environment.

Product Features:

Highly reactive super-oxide ions/electrons
Remove airborne droplet of pathogens (Virus & Bacteria)
Reduce harmful chemical gases
(Volatile Organic Compound, Formaldehyde)
Prevent Mold, Fungus & Algae Growth
High density ionizer for fresher air.

Build-in performance indicator light
Accessible faceplate to monitor the internal component functionality
Lightweight structure, simple installation
High efficiency of airflow performance & low dB
Low cost operation & maintenance

Specification

Dimension :  Inlet 195 x 195 x 191mm (Inner)
   :  Inlet 229x 229 x 191 mm (Outer)
   :  Outlet 228 x 228 mm (Inner)
   :  Outlet 234 x 234 mm (Outer)
Filter : Shinoe Filtration System
UVC : Hot Cathode UV Lamp
Ion Generator : STI 50 Mpcs/CM3
CFM : 110
Indicator Light : Green (Normal), Red (Faulty)
Noise Level : <48db
Power : 25W
Voltage : 220/240 50/60HZ
Duct Size : 150mm(6")inch
Weight : 2.4kg (Inlet)m 800G (Outlet)
Installation : Ceiling Mounted

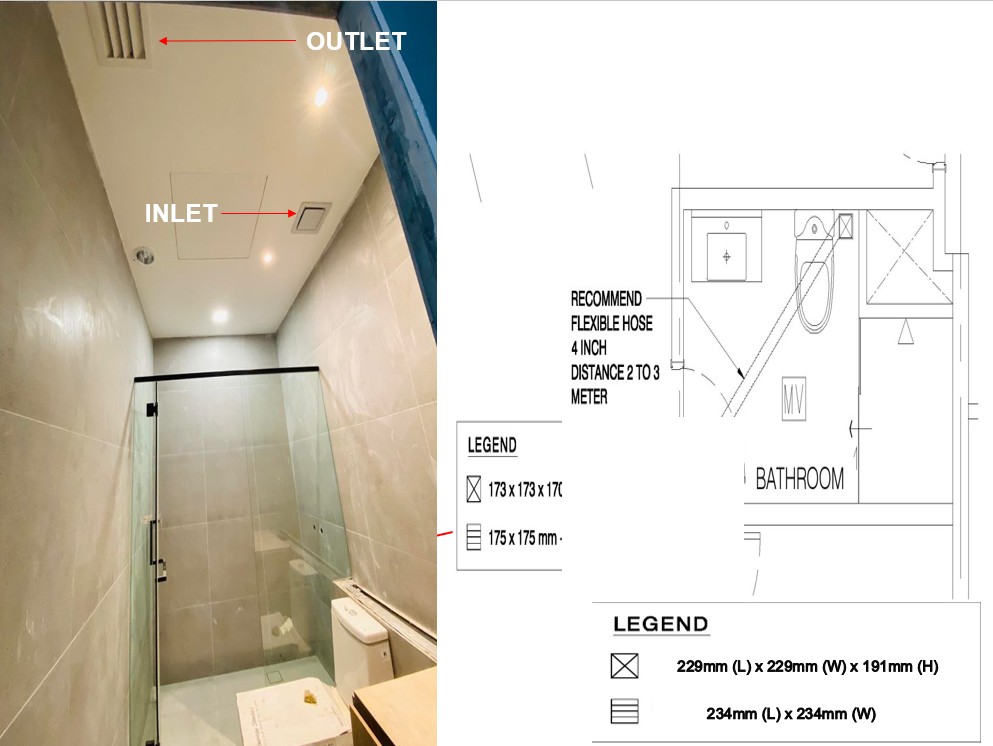

Installation

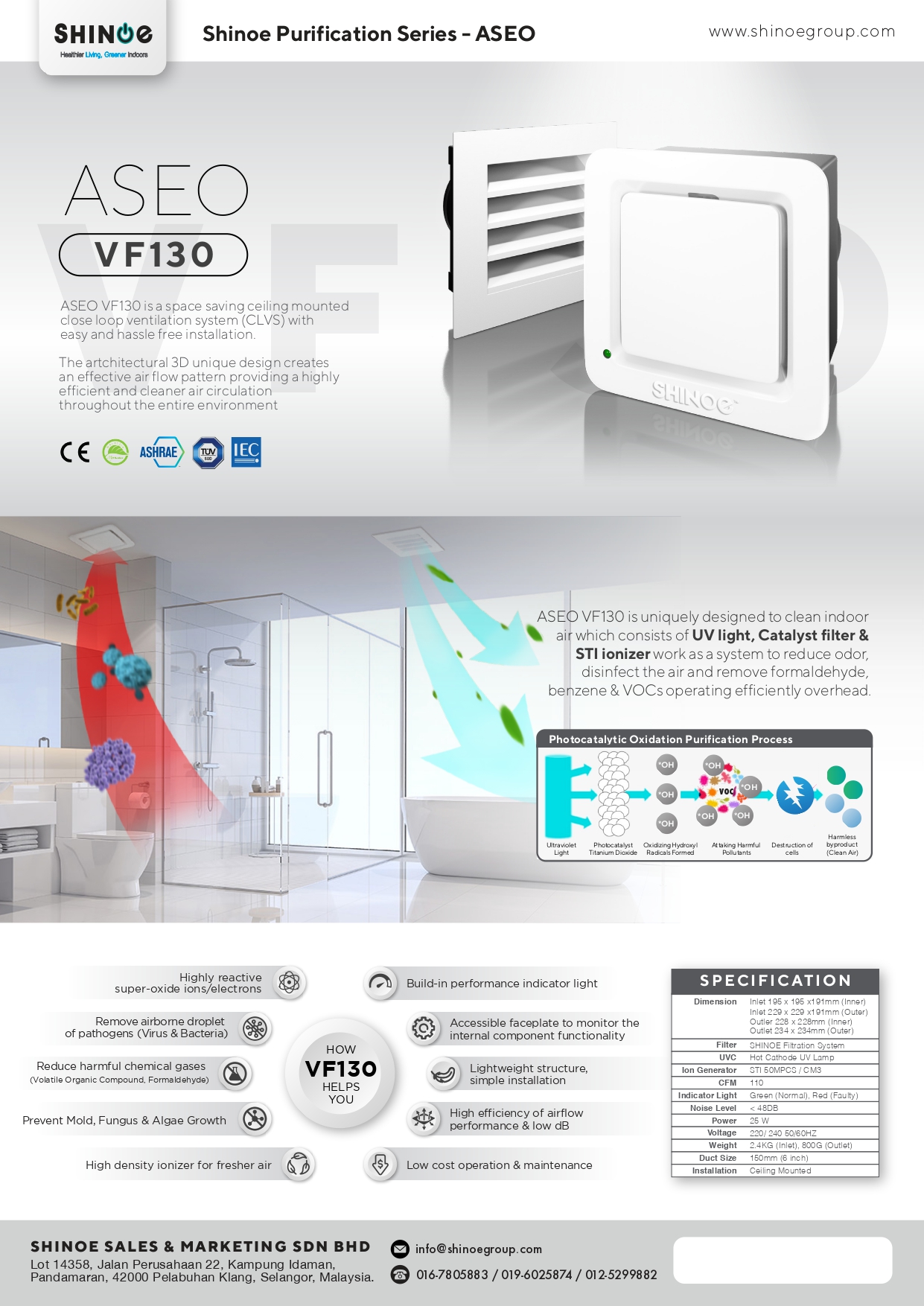

Brochure

Get your copy now!

ASEO VF130 is uniquely designed to clean indoor air which consists of UV light, Catalyst filter & STI ionizer work as a system to reduce odor, disinfect the air and remove formaldehyde, benzene & VOCs operating efficiently overhead.

Download
