ESP-600
The Shinoe Silencer Series ESP-600 Ceiling Mounted Electronic Air Cleaner are designed for use in pub, club, cigar room, restaurants, conference rooms, lounges and offices where overhead air cleanigis required. It removes airborne contaminants such as tobacco smoke and dust and even bio-aerosol from the air circulated through the unit, it consist of Shinoe Filtratiion System, Carbon Filter, which is effective in purifying almost all kinds of common odor and harmful pollutant gas such as VOC, formaldehyde, benzene and carbon monoxide.
Product Features:
- Air Quality sensor wiith auto mode (energy saving)
- LED display on panel showing operation status
- Remote controller for easy operation.
- Whirl fan with Large CFM and low noise.
- Stronger and more comprehensive disinfection efficiency with four UV lamps
- 12 layers pre-filter with anti-electromagnetic radiation
- Metal framed activated carbon
- High density ionizer for fresher air
Specification
- Dimension : 600 x 600mm x 365mm
- Filter : Shinoe Filtration System
- UVC : Activated Carbon Filter
- Ion Generator : STI 50 Mpcs/cm3
- CFM (High/Medium/Low) : 460/388/265
- Indication Lights : Green (normal), Red (faulty)
- Noise Level : 45dB
- Power : 101W
- Voltage : 220V
- Weight : 24kg
- Installation : Ceiling Mounted / Hanging
- Application : Pub / Club / Restaurant / Lounge / Smoking Area and etc.

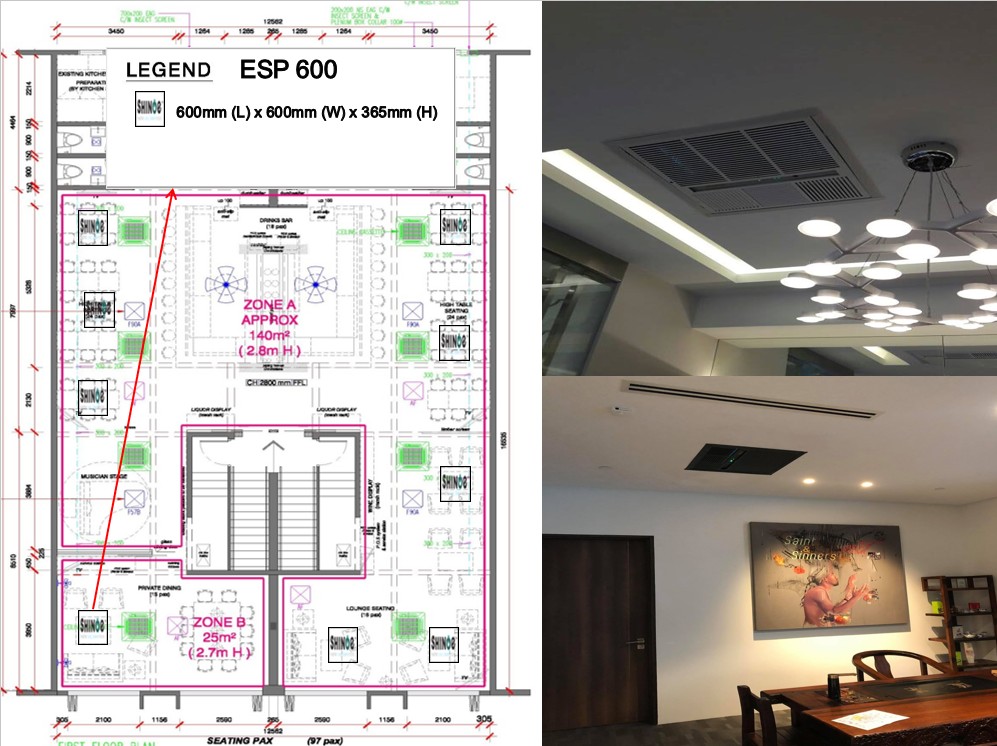

Installation

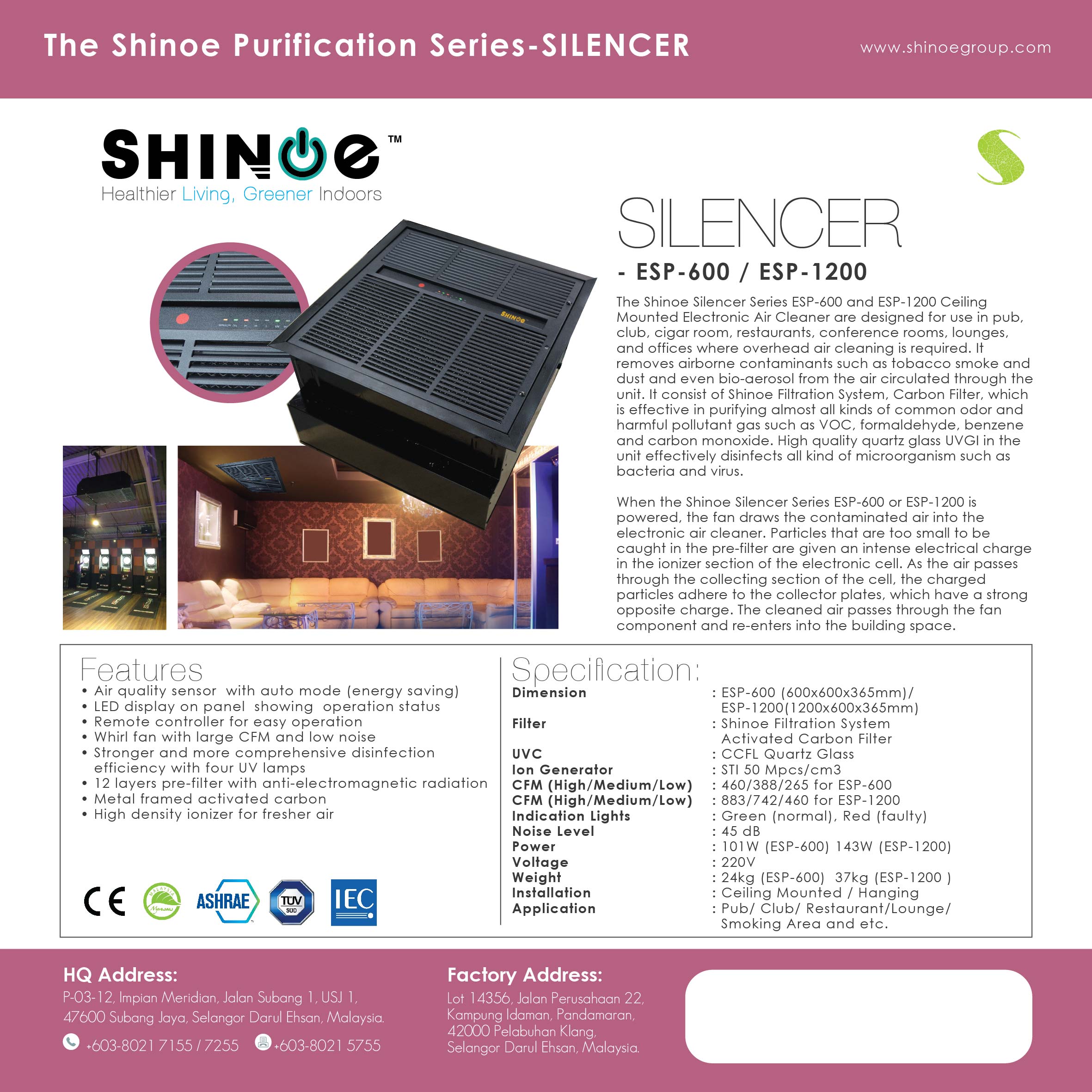

Brochure
Get your copy now!
When the Shinoe Silencer Series ESP-600 is powered, the fan draws the contaminated air into the electronic air cleaner. Particles that are too small to be caught in the pre-filter are given an intense electrical charge in the ionizer section of the electronic cell. As the air passes through the collection section of the cell, the charged particles adhere to the collector plates, which have a strong opposite charge. The cleaned air passes through the fan component and re-enters into the building space.
