The Shinoe Purification Series - SILENCER

CVF 160

The CVF160 unit is installed as central purification and ventilation system. By using a unique combination of UVC, STI and Shinoe filtration System. CVF160 achieves unmatched germicidal and odor reduction effectivess without producing any harmful ozone.

Product Features:

  • Improve Air Quality
  • Reduce infectious disease
  • Reduce mold, airborne allegerns, bacteria, germs
  • Remove odors, VOC and smoke
  • Improve air system efficiency
  • Low cost operation
  • Low maintenance
  • Safe and effective
  • Chemical free disinfection

Specification

  • Dimension :  958mm x 405mm x 405mm
  • Filter :   Shinoe Filtration System
  • UVC :   TUVC Quartz Glass
  • Ion Generator :   STI 200 Mpcs/cm3
  • CFM :   460
  • Noise Level :   <60db
  • Power :   130W
  • Duct Size :   150mm(6")inlet
  • Dimension :   300mm(12")outlet
  • Weight :   21kg
  • Installation :   Above Ceiling
  • Application :   Public Toilet, Smoking Area

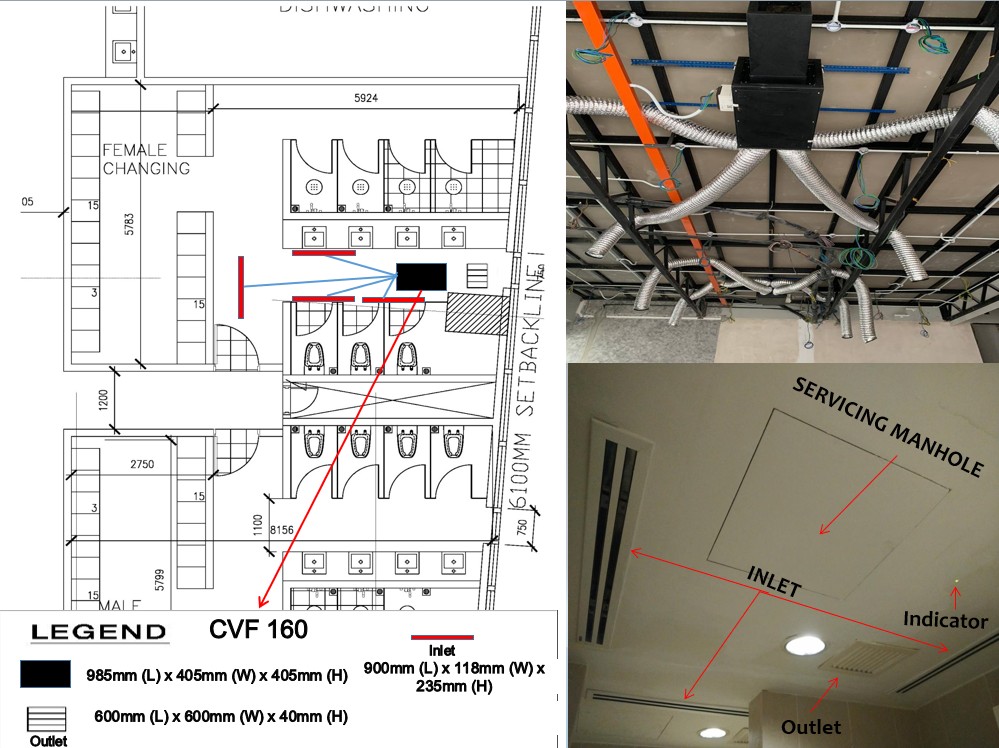

Installation

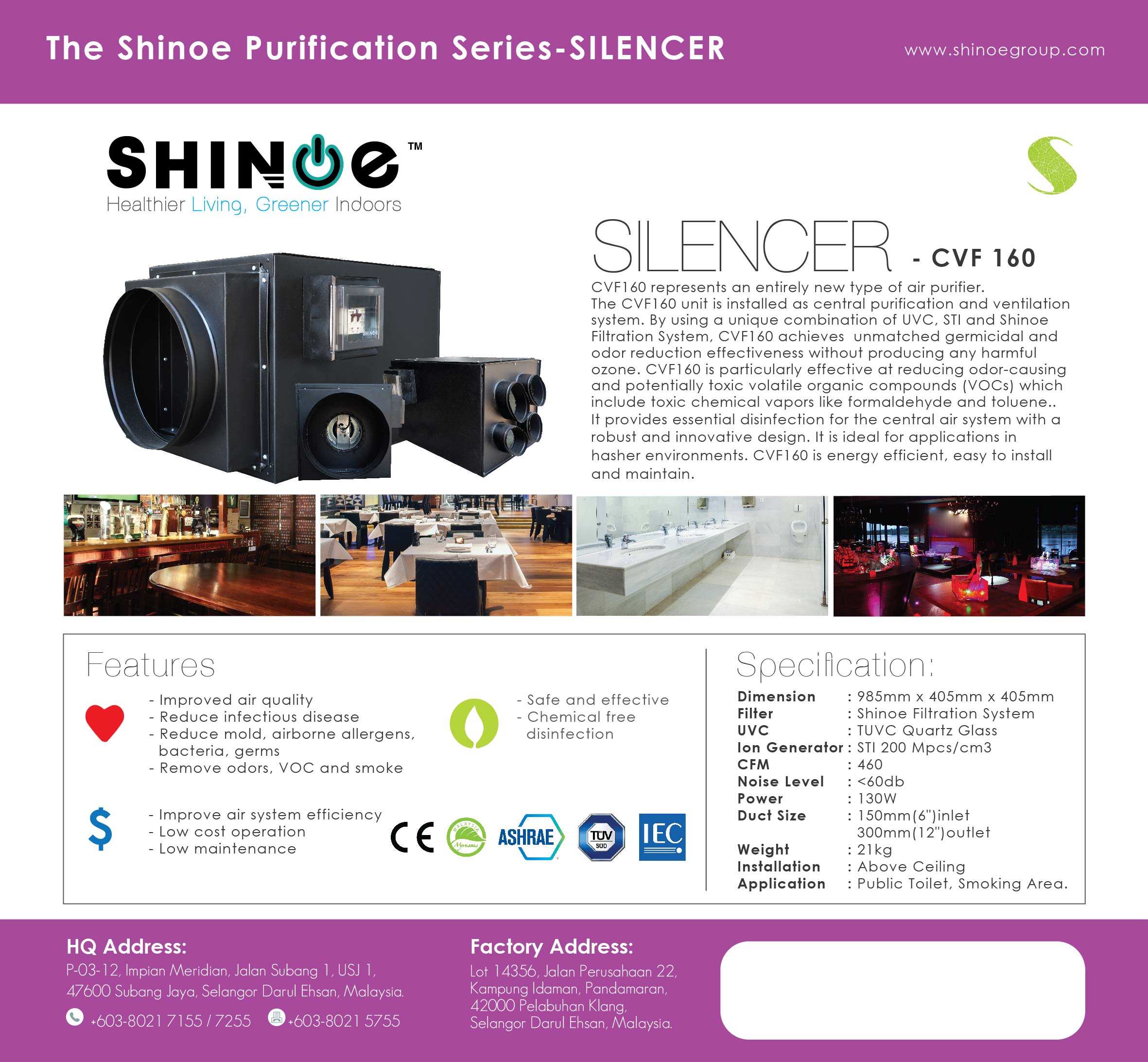

Brochure

Get your copy now!

CVF 160 is particularly effective at reducing odor-causing and potentially toxic volatile organic compounds (VOCs) which include toxic chemical vapors like formaldehyde and toluene. It provides essential disinfection for the central air system with a robust and innovative design. It is ideal for applications in hasher environments. CVF 160 is energy efficient, easy to install and maintain.
